XR2 Nano 2.4 ELRS Reciever

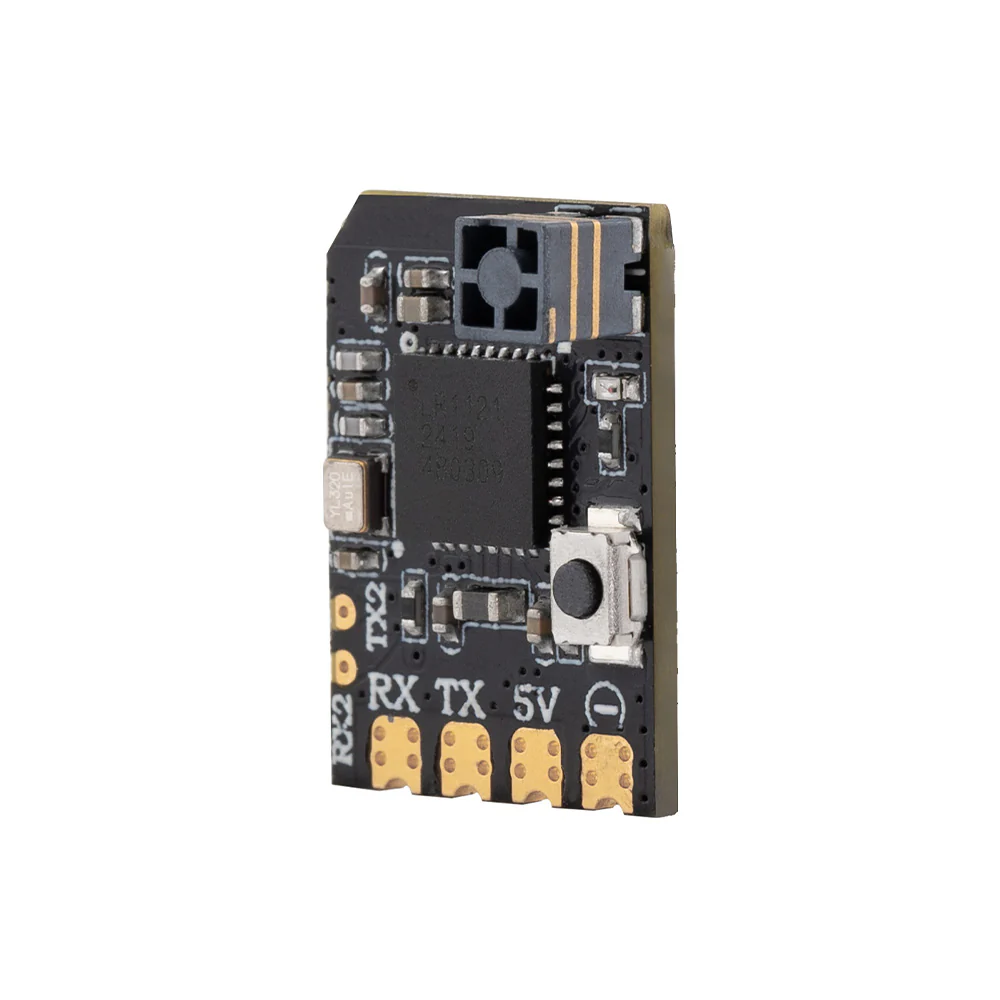

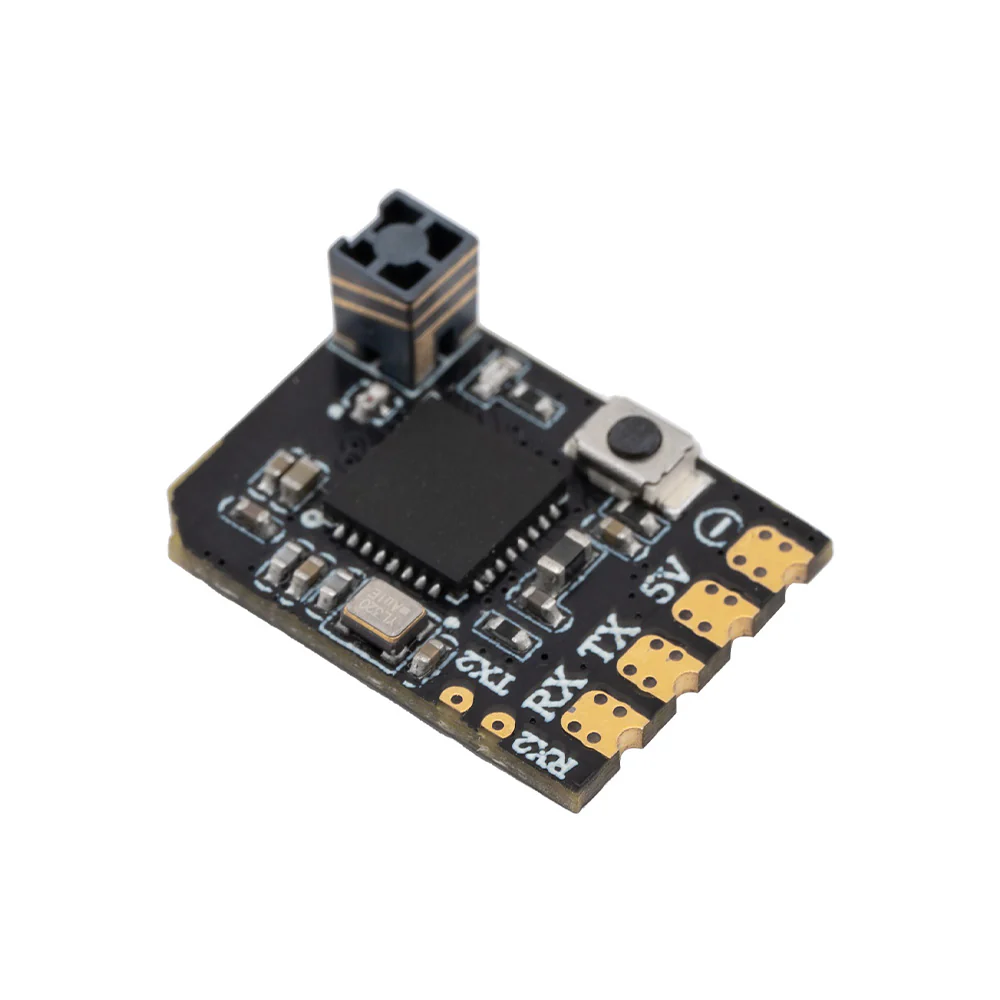

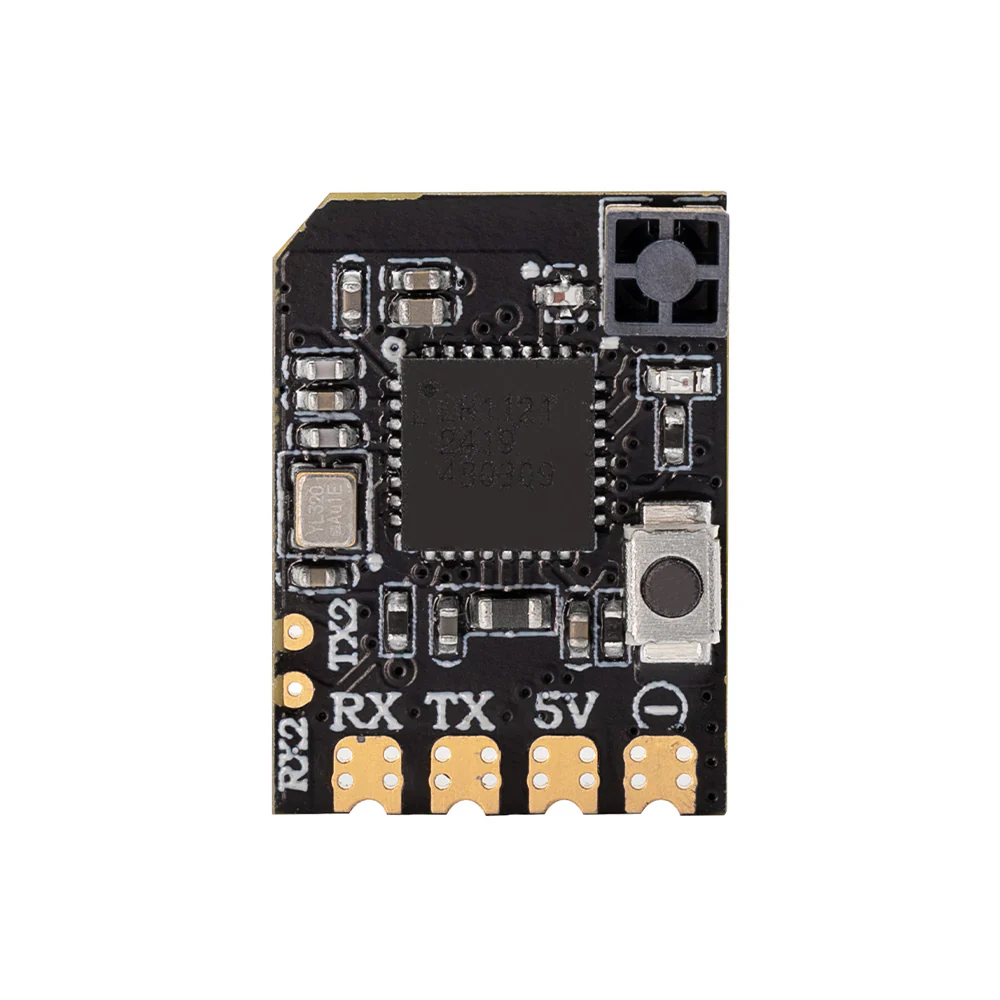

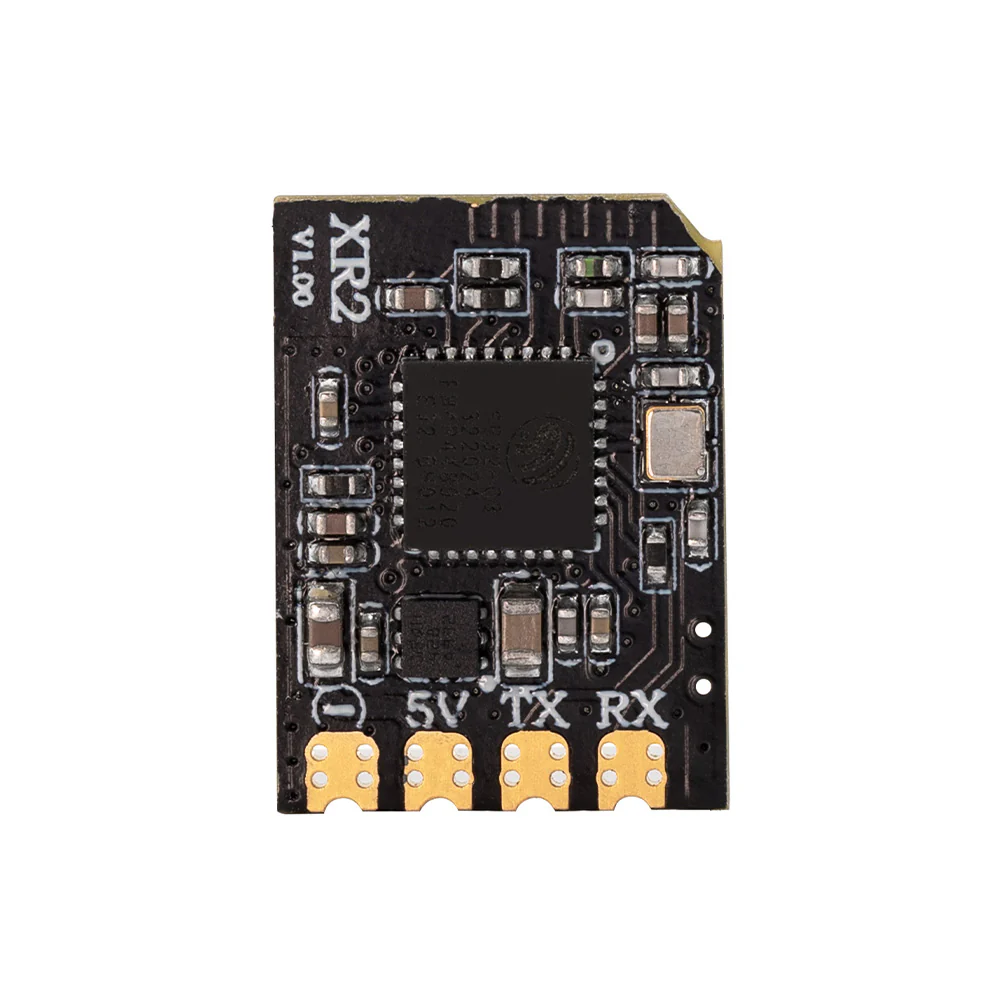

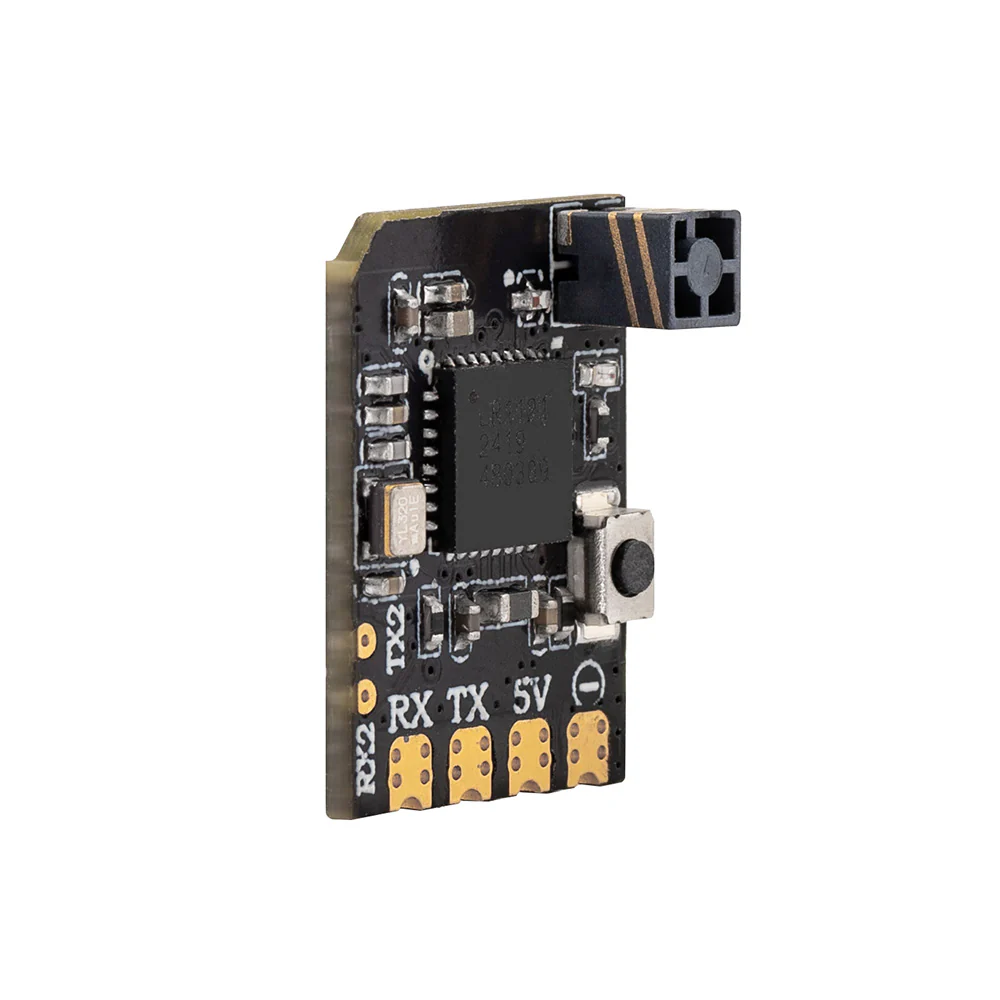

The XR2 Receiver is a nano-sized powerhouse engineered for 2.4GHz ExpressLRS, featuring an integrated tower antenna that delivers exceptional reception within its ultra-compact design. With a footprint of just 16x12mm and a lightweight of only 0.8g, it fits seamlessly into even the most space-constrained builds. Driven by the advanced Semtech LR1121 transceiver (third generation), the XR2 offers compatibility with all ELRS 2.4GHz transmitters and unlocks the benefits of DK500Hz mode for LR1121-based systems, ensuring unparalleled reliability and responsiveness. The built-in Wi-Fi module simplifies firmware updates and configuration via a WebUI on your PC or mobile device. With ultra-low latency and high refresh rates, the XR2 stands out in Whoops, micro drones, and fixed-wing models, where every gram and millimeter counts for peak performance.

For more details and support, visit expresslrs.org.

Features

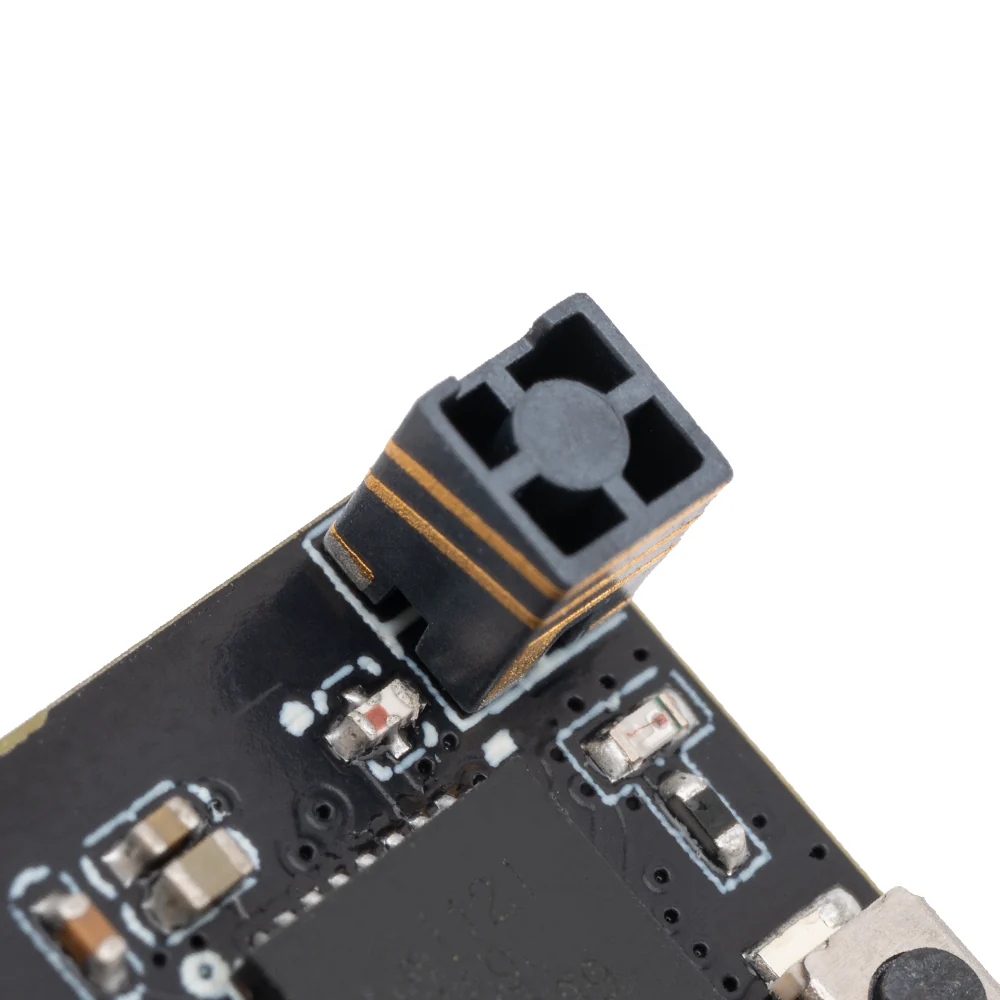

• Integrated 2.4GHz tower antenna
• ExpressLRS 2.4GHz

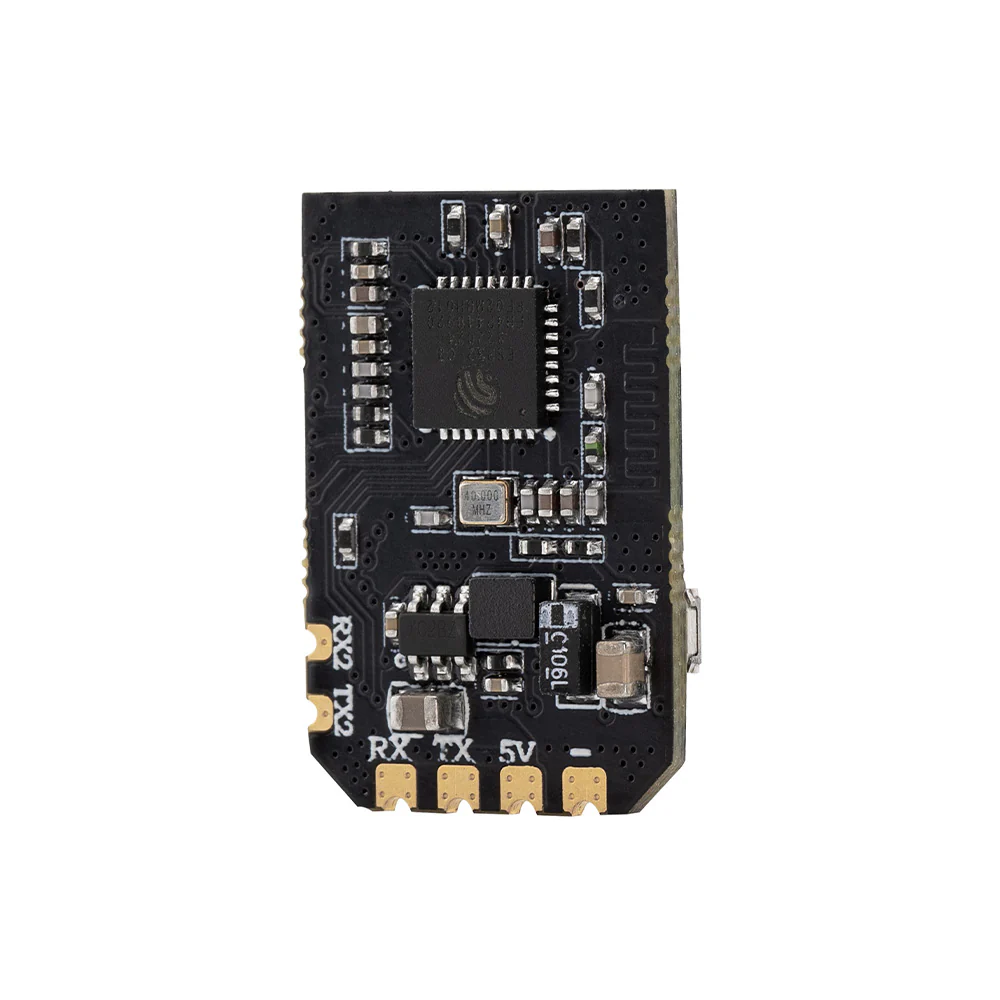

• ESP32C3 high-performance MCU
• Semtech LR1121 Transceiver
• Secondary UART port for advanced functionality
• Castled pads for easy soldering

Specification

• Item: XR2 Nano 2.4GHz ExpressLRS Receiver
• Type: ISM2.4
• MCU: ESP32C3
• RF Chip: Semtech LR1121
• Antenna: Integrated 2.4GHz Tower Antenna
• Frequency Range: 2.400 - 2.479GHz
• Telemetry Power: 10mW
• Maximum Packet rate: DK500Hz
• Minimum Packet refresh rate: 50Hz
• Working voltage: 5V
• Weight: 0.8g
• Dimension: 16mm * 12mm * 6mm
• Firmware Version: ExpressLRS v3.5.1 pre-installed
• FW Target:  RadioMaster XR2 2.4 RX
• Bus interface 1: CRSF
• Bus interface 2: UART

Weight

Dimensions

The XR2 Receiver is a nano-sized powerhouse engineered for 2.4GHz ExpressLRS, featuring an integrated tower antenna that delivers exceptional reception within its ultra-compact design. With a footprint of just 16x12mm and a lightweight of only 0.8g, it fits seamlessly into even the most space-constrained builds. Driven by the advanced Semtech LR1121 transceiver (third generation), the XR2 offers compatibility with all ELRS 2.4GHz transmitters and unlocks the benefits of DK500Hz mode for LR1121-based systems, ensuring unparalleled reliability and responsiveness. The built-in Wi-Fi module simplifies firmware updates and configuration via a WebUI on your PC or mobile device. With ultra-low latency and high refresh rates, the XR2 stands out in Whoops, micro drones, and fixed-wing models, where every gram and millimeter counts for peak performance.

For more details and support, visit expresslrs.org.

Please note this is the pre-order. Orders start shipping in early March.

Features

• Integrated 2.4GHz tower antenna
• ExpressLRS 2.4GHz
• ESP32C3 high-performance MCU
• Semtech LR1121 Transceiver
• Secondary UART port for advanced functionality
• Castled pads for easy soldering

Specification

• Item: XR2 Nano 2.4GHz ExpressLRS Receiver
• Type: ISM2.4
• MCU: ESP32C3
• RF Chip: Semtech LR1121
• Antenna: Integrated 2.4GHz Tower Antenna
• Frequency Range: 2.400 - 2.479GHz
• Telemetry Power: 10mW
• Maximum Packet rate: DK500Hz
• Minimum Packet refresh rate: 50Hz
• Working voltage: 5V
• Weight: 0.8g
• Dimension: 16mm * 12mm * 6mm
• Firmware Version: ExpressLRS v3.5.1 pre-installed
• FW Target:  RadioMaster XR2 2.4 RX
• Bus interface 1: CRSF
• Bus interface 2: UART

Weight

Dimensions

Associated Products

• XR1 Nano Multi-Frequency ExpressLRS Receiver
• XR3 Nano Multi-Frequency ExpressLRS Receiver

• XR4 Gemini Xrossband Dual-Band ExpressLRS Receiver
• 2.4GHz / Sub-G 900MHz Dual-Band T Antenna
• UFL 2.4Ghz T Antenna 65mm/95mm for ELRS Receivers
• UFL 915/868MHz T & Y Antenna for BR Series Receivers

Package Includes

• 1 * XR2 Nano 2.4GHz ExpressLRS Receiver
• 1 * CRSF Wire
• 3 * Heat-Shrinkable Tube
• 1 * Manual Card
